Note: To check for the existence of fuses and relays and for fuse / relay amperage for your particular vehicle you must see module 286.
*Diagram Number '24-01780-003' contains the PowerTrain PDM labels where you can view fuse amperage information.
Part Number
Description

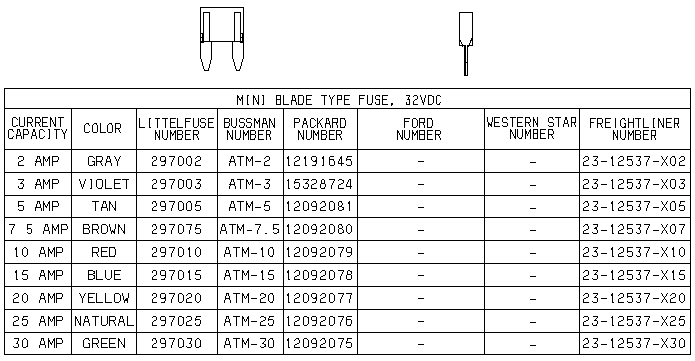

23-12537-xxx
Blade Fuse-Mini MP280 Male
