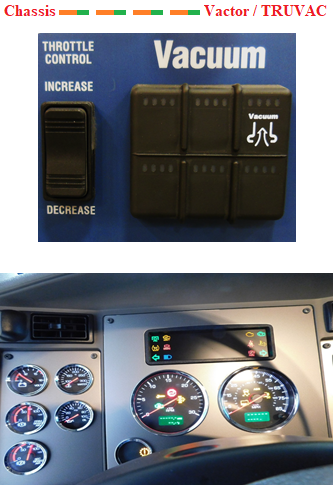

CAN BUS Circuits

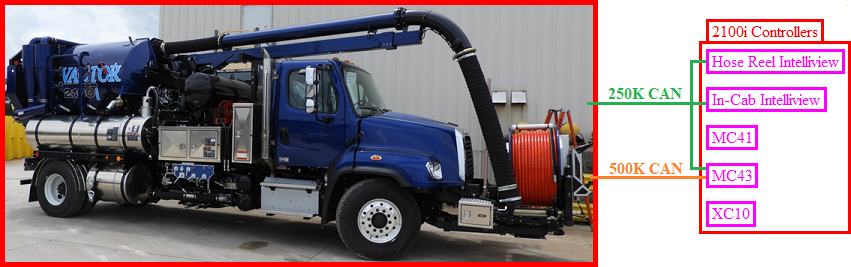

What are the Chassis CAN BUS circuits used for?

   - Control

   - Information

What is controlled on the chassis:

   - Engine RPMs - controlled either manually or automatically

   - Automatic Transmission gear selection

Monitored Chassis information:

   - Transmission gear selected

   - Output Shaft Speed

   - Engine RPMs

   - Other Operational data (engine temps; pressures)

   - Brake Pedal (applied)

   - Clutch Pedal (applied)

Chassis Information Screens

Chassis Information:

   - Chassis Engine RPM

   - Engine Hours

   - Engine Load %

   - Fuel Rate GPH

   - Fuel Level

   - Oil Pressure

   - Coolant Temp

   - Voltage

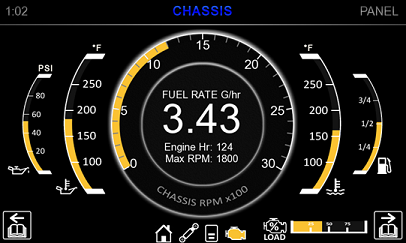

TRUVAC Full Size Intelliview Screen
