Jouley Electric School Bus

Power Distribution

Power Distribution Center

Mounted On Battery Box

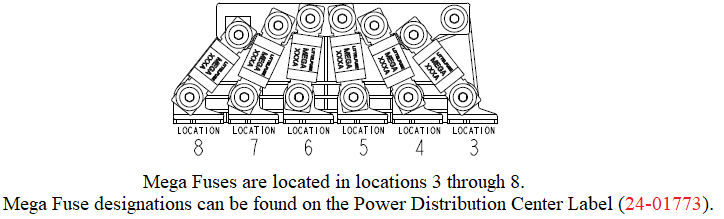

Mega Fuse Information



Here are the Mega Fuse part numbers and amperage
23-13607-040	40 Amp
23-13607-080	80 Amp
23-13607-100	100 Amp
23-13607-125	125 Amp
23-13607-150	150 Amp
23-13607-175	175 Amp
23-13607-200	200 Amp
23-13607-250	250 Amp
23-13607-300	300 Amp
23-13607-400	400 Amp
