Cacscadia OBD 16

Auxiliary PDM

Cavity Block

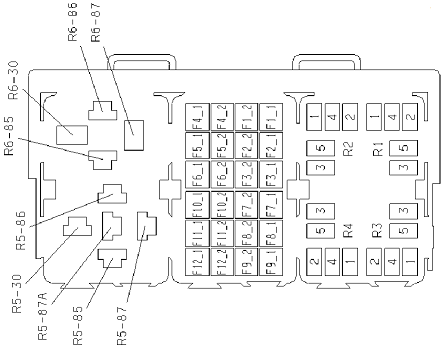

Location:

Auxiliary PDB

Cavity Type:

53 Cavity Block
Color: Black

Terminal P/N:

23-13305-004 PLUG-53CAV (Comes in kit A06-60719-000)



Cavity Type:

53 Cavity Block

Color:

Black

Terminal P/N:

23-13305-004

(Comes in kit A06-60719-000)

23-13305-004

Connector Cavities

Fem Minifuse

F1-1, F1-2,

F2-1, F2-2,

F3-1, F3-2,

F4-1, F4-2,

F5-1, F5-2,

F6-1, F6-2,

F7-1, F7-2,

F8-1, F8-2,

F9-1, F9-2,

F10-1, F10-2,

F11-1, F11-2,

F12-1, F12-2

Fem MRLY4.8

R1-1, R1-2,

R1-4, R2-1,

R2-2, R2-4,

R3-1, R3-2,

R3-4, R4-1,

R4-2, R4-4

Fem MRLY6.3

R1-3, R1-5,

R2-3, R2-5,

R3-3, R3-5,

R4-3, R4-5

Fem HRLY6.3

R5-30, R5-85,

R5-86, R5-87,

R6-85, R6-86,

R5-87A

Fem HRLY9.5

R6-30, R6-87
