Location	Connector P/N
	ATD_H_ATS_TNK_CLNT_VLV	23-13149-309

Important

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

---

Connector Part Number	Color	Terminal Part Numbers	Seal Part Numbers	Plug Part Number
23-13149-309	Black	23-13209-700 (18-20 GA) Female (Gold)     23-13209-701 (16 GA) Female (Gold)     23-13209-702 (18-20 GA) Female (Gold)     23-13209-720 (18-20 GA) Female (Tin)   23-13209-721 (16 GA) Female (Tin)	23-13216-070 (Yellow) 23-13216-071 (Grey)   23-13216-070 (Yellow)   23-13216-070 (Yellow) 23-13216-071 (Grey) 23-13216-070 (Yellow) 23-13216-071 (Grey) 23-13216-070 (Yellow)	23-13218-150

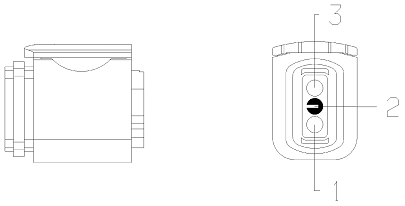

23-13149-309	Connector Cavities
	Fem MCP1.5KS CBL.OD.MM:1.4-2.42 1, 3 TYP TERM 23-13209-700 23-13209-701 23-13209-702 23-13209-720 23-13209-721	Fem BLKD 2

23-13209-700

23-13209-701

23-13209-702

23-13209-720

23-13209-721

23-13216-070 (Terminal Seal, Yellow)

23-13216-071 (Terminal Seal, Gray)

23-13218-150 (Cavity Seal - White)
