Item |
P/N |
|
A23-13361-018 Connector |
|---|
Important Information
When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.
If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.
------ ------ ------ ------ ------ ------
When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...
If available on that site, the part will be shown.
|
Connector Part Number |
Color |
Terminal Part Numbers |
Plug Part Number |
Can Mate To |
|---|---|---|---|---|
|
Connector: 1 x 23-13149-043
Connector: 1 x 23-13149-702
Cover: 1 x 23-13304-315 |
Black |
(18 GA) Female (Gold) (14-16 GA) Female (Tin) (12 GA) Female (Tin) (18-20 GA) Female (Tin) |
N/A |
N/A |
|

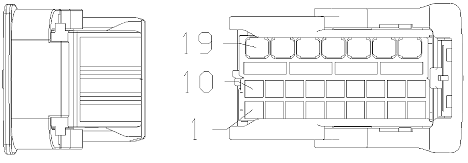

Connector Cavities |
||
|
|
Fem MCP 1.5K 20T, 18T
CBL.OD.MM: 1.55-2.25 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 TYP TERM |
Fem MCP 2.8 20T, 20G, 20S, 18T, 18G, 18S, 16T, 16G, 14T
CBL.OD.MM: 1.55-2.66 19, 20, 21, 22, 23, 24, 25 TYP TERM |
|
(18 GA) Female (Gold) |
|
|
|
(14-16 GA) Female (Tin) |
|
|
|
(12 GA) Female (Tin) |
|
|
|
(18-20 GA) Female (Tin) |
|
|
Important Information
When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.
If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.
------ ------ ------ ------ ------ ------
When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...
If available on that site, the part will be shown.
|
Connector Part Number |
Color |
Terminal Part Numbers |
Plug Part Number |
Can Mate To |
|---|---|---|---|---|
|
Cover:
Cover:
Cover:
Cover:
Cover:
* = Optional |
Black |
(18 GA) Female (Gold) |
N/A |
N/A |
|
Connector Cavities |
|
|
|
Fem MCP 1.5K 20T, 18T
CBL.OD.MM: 1.55-2.25 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 TYP TERM |
|
(18 GA) Female (Gold) |
|
|
|
(Connector Cover) |
|
|
|
(Connector Cover) |
|
|
|
(Connector Cover) |
|
|
|
(Connector Cover) |
|
|
|
(Connector Cover) |
|
|
Important Information
When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.
If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.
------ ------ ------ ------ ------ ------
When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...
If available on that site, the part will be shown.
|
Connector Part Number |
Color |
Terminal Part Numbers |
Plug Part Number |
Can Mate To |
|---|---|---|---|---|
|
*Cover:
*Cover: 23-13304-316 (Cover)
*Cover: 23-13304-317 (Cover)
* = Optional |
Natural |
(14-16 GA) Female (Tin) (12 GA) Female (Tin) (18-20 GA) Female (Tin) |
N/A | N/A |
|
Connector Cavities |
|
|
|
Fem MCP2.8 20T, 20G, 20S, 18T, 18G, 18S, 16T, 16G, 14T
CBL.OD.MM: 1.55-2.66 19, 20, 21, 22, 23, 24, 25 TYP TERM |
|
(14-16 GA) Female (Tin) |
|
|
|
(12 GA) Female (Tin) |
|
|
|
(18-20 GA) Female (Tin) |
|
|
|
(Connector Cover) |
|
|
