Important Information

When preparing to order terminals and seals, please check Paragon first to see if the part number exists within that system.

If the part number does not exist within Paragon, then it is not a production part. In this case, a different part number should be used.

------ ------ ------ ------ ------ ------

When clicking on the part number links on this page, you will be brought to the Daimler Excelerator parts web site...

If available on that site, the part will be shown.


Connector Part Number

Color

Terminal Part Numbers

Can Mate To

23-13141-812



* Connector Lock:

23-13302-403



Terminal Lock:

23-13302-106



* = Optional



Black

23-13213-100

(16-20 GA) Female (Tin)


23-13213-101

(14-22 GA) Female (Tin)


23-13213-102

(12-14 GA) Female (Tin)


23-13213-103

(10-12 GA) Female (Tin)


23-13213-104

(20-22 GA) Female (Tin)


23-13213-114

(12-14 GA) Female (Tin)

Bus PDM

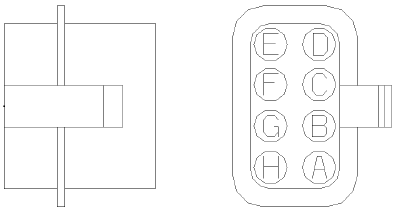

23-13141-812

Connector Cavities

Fem MP280

A, B, C, D, E,

F, G, H


23-13213-100

23-13213-101

23-13213-102

23-13213-103

23-13213-104

23-13213-114


23-13213-100

(16-20 GA) Female (Tin)


23-13213-101

(10-16 GA DBL) Female (Tin)


23-13213-102

(12-14 GA) Female (Tin)


23-13213-103

(10-12 GA) Female (Tin)


23-13213-104

(20-22 GA) Female (Tin)


23-13213-114

(12-14 GA) Female (Tin)



23-13302-106

(Connector Lock)


23-13302-403

(Connector Lock)
