U-Bolts
11-09624-xxx

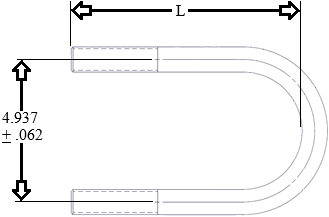

7/8 Inch U-Bolts

Part #	'L' Dimension
11-09624-065	6.500
11-09624-070	7.000
11-09624-075	7.500
11-09624-080	8.000
11-09624-085	8.500
11-09624-090	9.000
11-09624-095	9.500
11-09624-100	10.000
11-09624-105	10.500
11-09624-110	11.000
11-09624-115	11.500
11-09624-120	12.000
11-09624-125	12.500
11-09624-130	13.000
11-09624-135	13.500
11-09624-140	14.000
11-09624-145	14.500
11-09624-150	15.000
11-09624-155	15.500
11-09624-160	16.000
11-09624-165	16.500
11-09624-170	17.000
11-09624-175	17.500
11-09624-180	18.000
11-09624-185	18.500
11-09624-190	19.000
11-09624-195	19.500
11-09624-200	20.000
11-09624-205	20.500
11-09624-210	21.000
11-09624-215	21.500

*Note: If you try to open one of the above part numbers within EZWiring web site

you will receive a 'This drawing is not authorized for distribution' message and be unable' to view the drawing.

However, you can use the part # to be able to purchase the item through Excelerator or a dealership.
