U-Bolts
11-09363-xxx

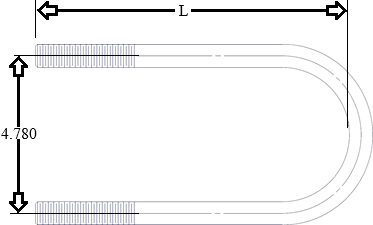

3/4 Inch U-Bolts

Part #	'L' Dimension
11-09363-065	6.500
11-09363-070	7.000
11-09363-075	7.500
11-09363-080	8.000
11-09363-085	8.500
11-09363-090	9.000
11-09363-095	9.500
11-09363-100	10.000
11-09363-105	10.500
11-09363-110	11.000
11-09363-115	11.500
11-09363-120	12.000
11-09363-125	12.500
11-09363-130	13.000
11-09363-135	13.500
11-09363-140	14.000
11-09363-145	14.500
11-09363-150	15.000
11-09363-155	15.500
11-09363-160	16.000
11-09363-165	16.500
11-09363-170	17.000
11-09363-175	17.500
11-09363-180	18.000
11-09363-185	18.500
11-09363-190	19.000
11-09363-195	19.500
11-09363-200	20.000
11-09363-205	20.500
11-09363-210	21.000
11-09363-215	21.500
11-09363-220	22.000
11-09363-225	22.500
11-09363-230	23.000
11-09363-235	23.500
11-09363-240	24.000
11-09363-245	24.500
11-09363-250	25.000
11-09363-255	25.500
11-09363-260	26.000
11-09363-265	26.500
11-09363-270	27.000
11-09363-275	27.500
11-09363-280	28.000
11-09363-285	28.500
11-09363-290	29.000
11-09363-295	29.500
11-09363-300	30.000
11-09363-305	30.500
11-09363-310	31.000
11-09363-315	31.500
11-09363-320	32.000
11-09363-325	32.500

*Note: If you try to open one of the above part numbers within EZWiring web site

you will receive a 'This drawing is not authorized for distribution' message and be unable' to view the drawing.

However, you can use the part # to be able to purchase the item through Excelerator or a dealership.
