Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13148-909

* Back Shell: 23-13303-605



* Optional

Green

23-13210-110

(16-18 GA) Male (Nickel)


23-13210-111

(14-16 GA) Male (Nickel)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(16-18 GA) Male (Gold)

23-13218-201

23-13148-909

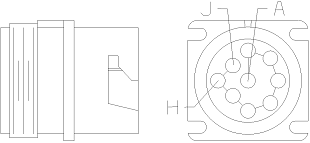

Connector Cavities

Male S16 18SXL, 16SXL,

14GXL, 14SXL

CBL.OD.MM: 2.54-3.81

A, B, C, D, E, F, G, H, J


TYP TERM

23-13210-110

23-13210-111

23-13210-130

23-13210-131

23-13210-132


23-13303-605

(Back Shell)


23-13210-110


23-13210-111


23-13210-130


23-13210-131


23-13210-132


23-13218-201
