Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13148-054

* Back Shell: 23-13303-614 (90 Degrees)



* = Optional

Black

23-13210-100

(16-18 GA) Female (Nickel)


23-13210-101

(14-16 GA) Female (Nickel)


23-13210-108

(16-20 GA) Female (Nickel)


23-13210-120

(16-18 GA) Female (Gold)


23-13210-121

(14-16 GA) Female (Gold)


23-13210-122

(16-18 GA) Female (Gold)

23-13218-201


23-13148-050

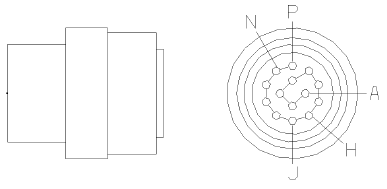

Connector Cavities

Fem S16 18TXL 18GXL, 19SXL,

16TXL, 16GXL, 14TXL, 14GXL

CBL.OD.MM:1.35-3.05

A, B, C, D, E, F, G, H,

J, K, L, M, N, P


TYP TERM

23-13210-100

23-13210-101

23-13210-108

23-13210-120

23-13210-121

23-13210-122


23-13303-614

(Back Shell)


23-13210-100


23-13210-101


23-13210-120


23-13210-121


23-13210-122


23-13218-201
