Connector Part Number

Color

Terminal Part Numbers

Terminal Lock

Plug Part Number

23-13148-000

Gray

23-13210-110

(16-18 GA) Male (Nickle)


23-13210-111

(14-16 GA) Male (Nickle)


23-13210-130

(16-18 GA) Male (Gold)


23-13210-131

(14-16 GA) Male (Gold)


23-13210-132

(16-18 GA) Male (Gold)

23-13303-000

23-13218-201

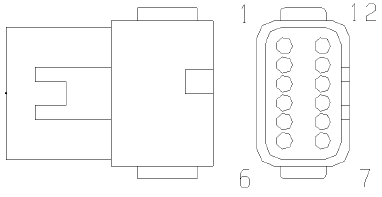

23-13148-002 Connector Cavities

Male S16 18GXL,
18SXL, 16GXL, 16SXL
14TXL, 14GXL, 14SXL
CBL.OD.MM:2.23-3.68

1, 2, 3, 4, 5, 6, 7,

8, 9, 10, 11, 12


TYP TERM

23-13210-110

23-13210-111

23-13210-130

23-13210-131

23-13210-132


23-13210-110


23-13210-111



23-13210-130


23-13210-131


23-13210-132


23-13303-000

(Terminal Lock)


23-13218-201
