Connector Part Number

Color

Terminal Part Numbers

Plug Part Number

23-13147-800

Black

23-13214-300

(14-16 GA) Female (Tin)


23-13214-301

(14-16 GA) Female (Tin)


23-13214-302

(18-20 GA) Female (Tin)


23-13214-303

(18-20 GA) Female (Tin)

N/A

23-13147-800

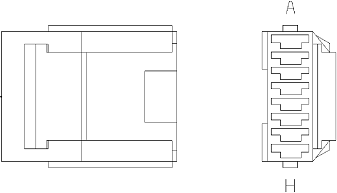

Connector Cavities

FEM PCB

A, B, C, D,

E, F, G, H


TYP TERM

23-13214-300

23-13214-301

23-13214-302

23-13214-303


23-13214-300

(14-16 GA) (Tin)


23-13214-301

(14-16 GA) (Tin)


23-13214-302

(18-20 GA) (Tin)


23-13214-303

(18-20 GA) (Tin)
